Main features

7-9 Minute Open Time
19-23 Minute Fixture Time
3,300 psi Steel Shear

Product Description

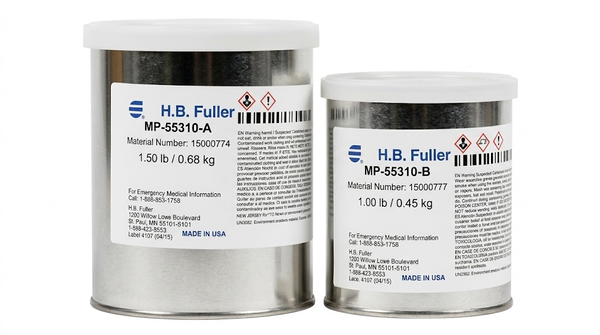

H.B. Fuller MP-55310 Methacrylate Structural Adhesive provides a two-part methyl methacrylate system for structural bonding of metals, thermosets, thermoplastics, and composite assemblies. The resin and activator mix 1:1 by volume or weight and provide a 7-9 minute open time with fixture in 19-23 minutes at 25 deg C. The adhesive fills gaps up to 0.125 in and reaches full cure in 24 hours. Typical cured data include Shore D 75 hardness, 4,350-5,800 psi tensile strength, and overlap shear of 3,300 psi on carbon steel and 3,100 psi on aluminum under ASTM D1002 conditions.

Key features

Seven-to-nine-minute open time: Provides a defined working window for adhesive placement and assembly.
Nineteen-to-twenty-three-minute fixture: Develops fixture strength in 19-23 minutes at 25 deg C.
One-eighth-inch gap fill: Fills bond gaps up to 0.125 in in bonded assemblies.

Applications / Suitable for

Bonding aluminum, steel, stainless steel, and e-coated metals
Bonding fiberglass, phenolic, gel coat, epoxy, and polyurethane materials
Bonding ABS, polycarbonate, nylon/PA, PVC, PEEK, and PBT or PET blends

TDS, SDS & Technical Documents

MP-55310 Technical Data Sheet

English (Technical Data Sheet (TDS))

Technical Specifications

General Properties

Chemistry Type

Methyl Methacrylate

Color

Off white or amber

Component System

two

Density (g)

0.98 g/cm3

Thermal Properties

Flash Point

10 °C

Operating Temperature

-67 to 250 °C

Additional Information

Technical properties

Uncured and working properties

Property	Value	Unit	Method / condition
Mix ratio	1:1	by volume or weight	Resin to activator
Resin viscosity	60,000-80,000	cP	Brookfield RV7; 20 rpm; 25 deg C
Activator viscosity	60,000-110,000	cP	Brookfield RV7; 20 rpm; 25 deg C
Mixed density	0.98	g/cc	Typical
Open time	7-9	min	25 deg C
Fixture time	19-23	min	25 deg C
Full cure	24	h	Room temperature
Maximum gap fill	0.125	in	Bondline
