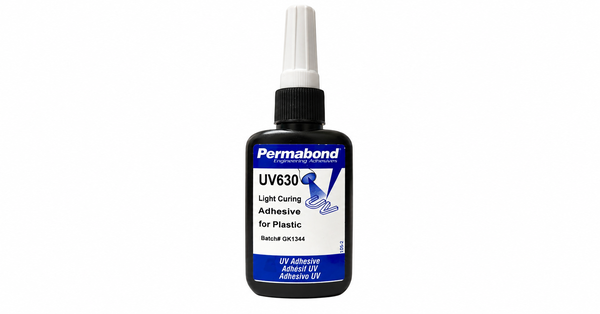

PERMABOND UV630
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Low-Viscosity Plastic Bonding
- Fast 365 to 420 nm Cure
- High-Elongation Cured Bond
Product Description
Permabond UV630 is a single-part, low-viscosity methacrylate adhesive for fast UV bonding of plastics, including polycarbonate. The clear liquid has a typical viscosity of 250 mPa s at 25 deg C and cures across 365 to 420 nm. Depending on lamp output and substrate transmission, fixture time on acrylic ranges from 10 seconds with a 4 mW/cm^2 battery lamp to 2 seconds with a 300 mW/cm^2 light guide. The cured adhesive combines typical tensile strength of 14 N/mm^2 with 110% elongation and high shear and impact resistance for assemblies using substrates with different coefficients of thermal expansion.
Key features
- Low-Viscosity Plastic Bonding: A 250 mPa s viscosity supports controlled application to plastic joints.
- Fast 365 to 420 nm Cure: Fixtures on acrylic in 2 to 10 seconds under the stated lamp conditions.
- High-Elongation Cured Bond: Provides 110% typical elongation with high shear and impact resistance.
Applications
Applications include plastic bonding, polycarbonate assembly, and joints that combine substrates with different coefficients of thermal expansion.
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Fixture time depends on lamp power, spectral output, distance, and substrate transmission.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical composition | Methacrylate ester | As supplied | |
| Appearance | Colorless, clear | As supplied | |
| Viscosity | 250 | mPa s | At 25 deg C; 20 rpm |
| Specific gravity | 1.1 | As supplied | |
| Fixture time on acrylic | 10 | seconds | 4 mW/cm^2 battery lamp |
| Fixture time on acrylic | 4 | seconds | 100 mW/cm^2 LED lamp |
| Fixture time on acrylic | 2 | seconds | 300 mW/cm^2 UV light guide |
| Cure wavelength | 365 to 420 | nm | Match lamp output to the photoinitiator |
After-processing / final-state properties
Strength and dielectric values are typical cured results for the stated methods.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Overlap shear - polycarbonate | >9 | N/mm^2 | ISO 4587; substrate failure observed |
| Overlap shear - acrylic | >1.5 | N/mm^2 | ISO 4587 |
| Tensile strength | 14 | N/mm^2 | ISO 37 |
| Refractive index | >1.490 | Cured adhesive | |
| Elongation at break | 110 | % | ISO 37 |
| Hardness | 60 | Shore D | ISO 868 |
| Dielectric strength | 25 to 30 | kV/mm | Typical cured value |
| Water absorption | <3.5 | % | ISO 62; 2 hours in boiling water |
