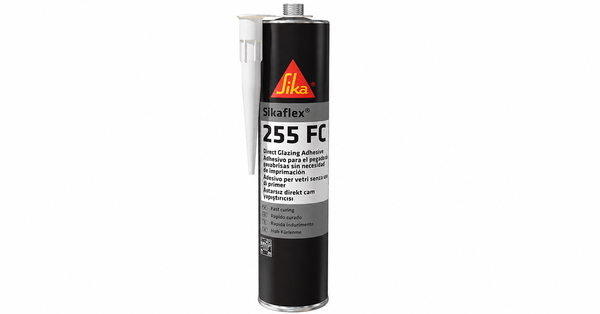

SIKAFLEX 255FC
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Fast-Curing Direct Glazing
- 20-Minute Glazing Open Time
- Non-Sag Glazing Bead Application
Product Description
Sikaflex-255 FC is a fast-curing, one-component polyurethane adhesive for direct glazing and glass replacement in commercial vehicles. The black material has very good non-sag properties, a 20-minute open time, and a 40-minute skin time at 23 deg C and 50% relative humidity, supporting controlled glass installation in warm conditions. After cure, typical properties include 6 MPa tensile strength, 450% elongation, 12 N/mm tear propagation resistance, and 4 MPa tensile lap-shear strength. The adhesive is compatible with Sika's black-primerless bonding process for mineral-glass windows within the prescribed pretreatment system.
Key features
- Fast-curing glazing: The adhesive is formulated for commercial-vehicle direct glazing and glass replacement
- 20-minute open time: Defines the glass-installation window at 23 deg C and 50% relative humidity
- Non-sag bead control: Very good non-sag properties support triangular-bead application
Applications
Commercial-vehicle direct glazing; mineral-glass window installation; vehicle glass replacement; Sika black-primerless bonding processes.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Mechanical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical base | 1-component polyurethane | As supplied | |
| Color | Black | CQP001-1 | |
| Density | 1.2 | kg/l | Uncured |
| Non-sag properties | Very good | As supplied | |
| Application temperature | 10 to 35 | deg C | Product and ambient range |
| Skin time | 40 | minutes | CQP019-1; 23 deg C / 50% RH |
| Open time | 20 | minutes | CQP526-1; 23 deg C / 50% RH |
| Shelf life - cartridge / unipack | 9 | months | Storage below 25 deg C |
After-processing / final-state properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shrinkage | 3 | % | CQP014-1 |
| Hardness | 60 | Shore A | CQP023-1 / ISO 48-4 |
| Tensile strength | 6 | MPa | CQP036-1 / ISO 527 |
| Elongation at break | 450 | % | CQP036-1 / ISO 527 |
| Tear propagation resistance | 12 | N/mm | CQP045-1 / ISO 34 |
| Tensile lap-shear strength | 4 | MPa | CQP046-1 / ISO 4587 |
| Service temperature | -40 to 90 | deg C | CQP509-1 / CQP513-1 |
